SOPWITH CAMEL PROPELLER FUND RAISER
POSTER AND CONSTRUCTION DRAWING - €12 .00
Just DOWNLOAD and print
FILE INCLUDES:
1x Poster: 700 x 500cm
1x Instruction HD drawing made to scale

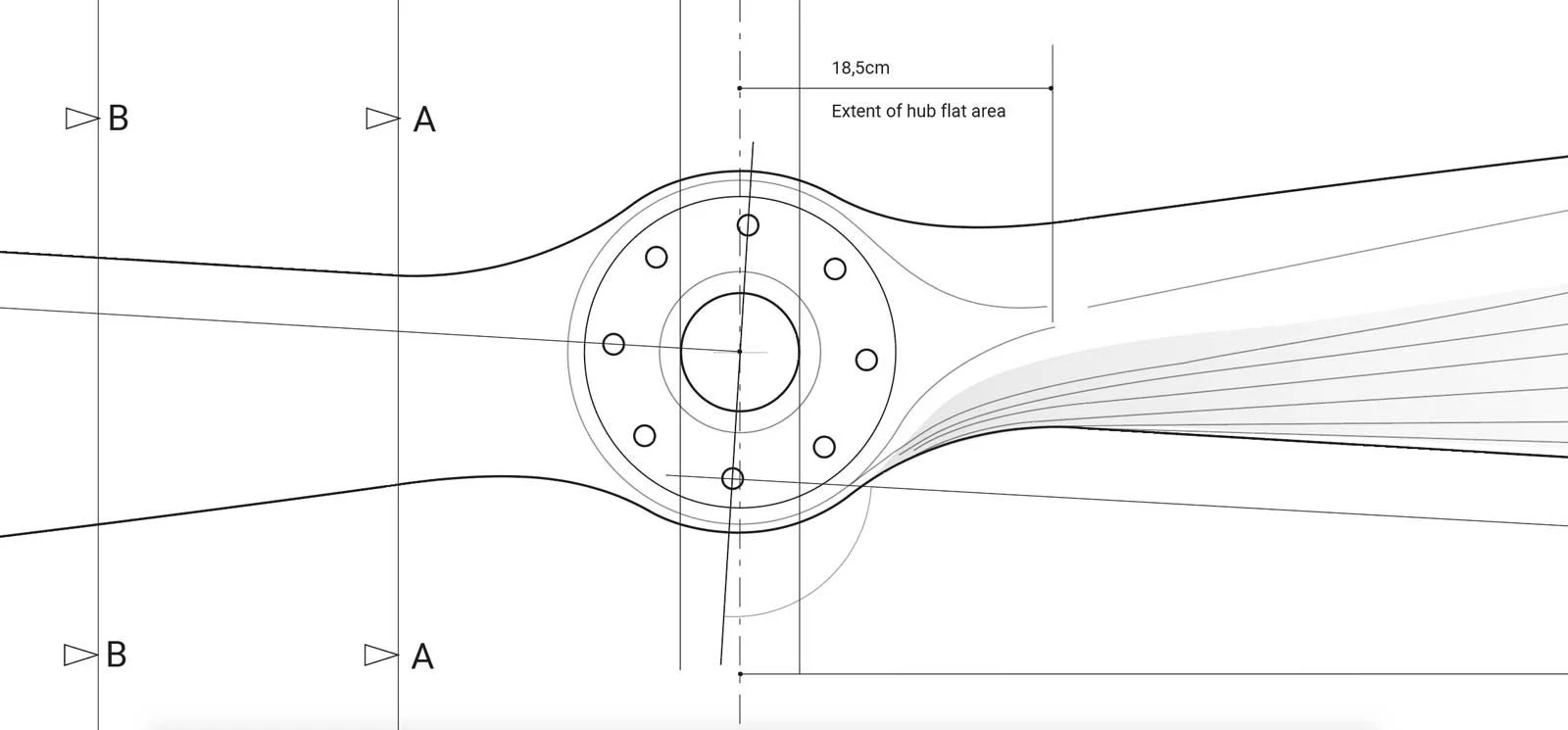

Instruction HD fine line drawing is full of detailed information and measurements allowing exact scale models to be made. Drawn in 10th scale ready enlarge all the way up to 100%
I’ve made two detailed engineering drawings an antique mahogany propeller from a Sopwith Camel F1, a beautiful object with quite a history that I explain in greater detail in the text.
All measurements were hand recorded using old fashioned drafting tools and callipers then hand plotted onto paper. I‘ve created two drawings; a highly detailed technical description in exact scale showing all dimensions, options, airfoil sections etc and a simplified version that is perfect for framing.
You get both files for only €12 and the money raised will go towards keeping the aircraft illustration projects ups and running. If you want something to hang on a wall, build a scale propeller or just want to have a documented historic record of a WW1 aviation artefact please support the project.
FUND AN AIRCRAFT or Panel
Im collecting funds to start the next giant scale project, either a Fairy Swordfish or a Hawker Fury. All that fabric and rigging, metal, oil, picking tape, patches , bangs and scratches. Finished aircraft will be at least 100 - 120cm in width because of the amount of detail that’ll be included.
P-47 INSTRUMENT PANEL 100% Scale
I’ve managed to get the panel off to a great start with the help from amazing AirCorps archive but there is a long way to go.I need to illustrate every US Airforce instrument and switch from scratch. It’s a mountain of work but when it’s finished it’ll be a 100% scale P-47 instrument panel to museum quality.
TYPHOON 1B PANEL 100% Scale
Here’s another panel that I’ve been slowly collecting information on. The panel is based on genuine Hawkers engineering drawings that have been very hard to find but at last I’ve started the work. It’s still al great deal of work to complete as I want to include the thigh panels as well. By the time it’s finished I’ll be an epic 100% scale Hawker Typhoon instrument panel to museum quality.
